WS306-19 LCD screen Monitor manufacturer from China Guangzhou Wings Technology Company

Payment Terms:	T/T
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Application: Others

Screen Size: Others

,LCD MonitorIndustrial touch screen monitor

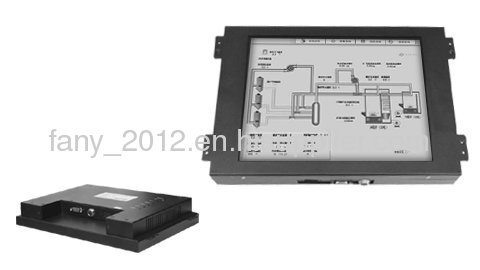

·WS-306 LCD monitor, is a new design with 19 "LCD high-brightness LCD , resistive touch screen is optional;
·The brightness and contrast of the LCD screen can be adjusted. It also has energy-saving standby mode; 483mm X 364.8mm X 56mm

Gross weight 11.3KG

Environment
Work temperature -10℃-50℃
Storage temperature -20℃-60℃
Work humidity 20~90%@ 40℃ Non-condensing / non-touch state

Vibration 1G peak,5~500Hz(Random)
Impact 15Gpeak acceleration(Duration is 11ms)

Waterproof grade With NEMA4,IP65 certification
EMC CE/FCC A
Power Input Output Output current Output Efficiency Total adjustments

100~240V 12V 4A 48W 85% ±1% 47~63Hz
Frequency Specifications Built-in over-voltage, over-current short protection
MTBF 120,000 hours
Safety UL/CSA/TUV/CE/3C

LCD
Type a-Si TFT-LCD
Screen Size 19"
Aspect Ratio 4:3
Gray Time 5/11 (Tr/Tf) ms
Contrast 700:1
Brightness 350
Resolution 1280 X 1024( default)
Pixel Pitch 0.297 x 0.297 mm
Color 16.7M
Viewing Angle 65/65/45/55 (L/R/U/D)
Dimensions 326.5 x 253.5 x 11.2 mm (WxHxD)
Visual Area 304.1 x 228.1 mm (WxH)
Display mode Normally White
Power 10.25 W
Panel weight 1,000 g
Signal Interface 1ch LVDS
Backlight Type 2 CCFLs
Backlight Life 100,000 hours
Input 12V DC
Dimming OSD control

Touchscreen (Optional)
Type 5-wire resistive
Resolution 19"Continuous
Optical transmission rate 76%±2
Transmittance 80%-90%
Operating pressure 25G(General standard)-35G
Yang resistance characteristics 300
The average displacement difference 1%
Port COM/USB (Optional )
Operating system Support Windows,NT,UNIX,LINUX,NOVELL,DOS etc.,

Ordering information
19" LCD monitor,w/VGA,w/12V power supply

19" LCD monitor,w/VGA,w/12V power supply ,w/5 wires touch Screen
